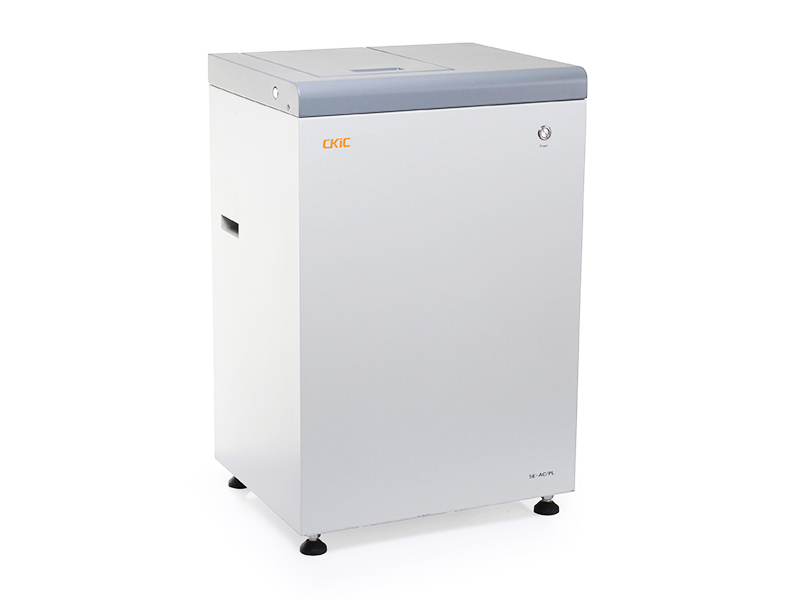

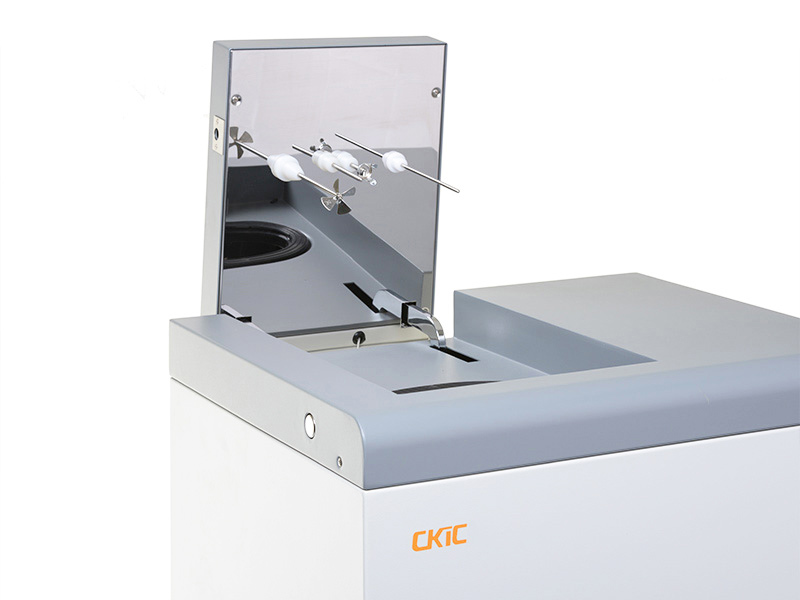

5E-AC/PL Calorimeter

5E-AC/PL calorimeter is used to determine the calorific value of solid and liquid combustibles such as oil, coal, coke, foodstuffs and biomass products, which is widely applied in power plant, coal mine, metallurgy, chemical industry, commercial inspection, scientific research, etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specifications
  • Spare parts
  • Case
Standard Configuration:
Main analyzer
Standard CV bomb
Computer
Handle Oxygen Charger
Crucibles
Ignition Wire
Benzoic Acid
O-ring kit
Tool kit
Optional Configuration:
Lens paper
Pellet press&
Bench-top oxygen charger
Halogen Resistant Oxygen Vessel







Features:1. Water cycling system applies the theory of communicating vessels, simple and reliable.
2. Large jacket volume minimizes the heat transfer between bucket and the environment.
3. Large water tank is equipped for cooling down water from the bucket after each analysis.
4. Auto-diagnosis, remote data transfer and balance connection available.

Model 5E-AC/PL Calorimeter
Conforms to Method AS 1038.5, ASTM D240, ASTM D5865, ASTM D4809, ASTM E711, BIS 1350, BS EN15400, GB/T 30727, GB/T 213, ISO 1928, ISO 9831, ISO 18125
Precision (1g Benzoic Acid) 0.05%RSD*
Measuring range Up to 50000J
Temp.Resolution 0.0001
Control Ability 2 Units/ 1 PC available
Analysis Time per Sample Dynamic method:11mins; Classical Method: 16mins
Test Per Hour Single control Double control
Up to 4 Up to 8
Jacket Type Isoperibol
Bomb Identification Up to 2 for automatic, several for manual
Balance Connection Available
Network Connection Available
Bucket Filling Automatic
Oxygen Filling Semi-Automatic
Structure Vertical
Bomb Vessel Lifting Manual
Power Supply Single phase, AC220V±10%, 50/60Hz,≤500W
Net Weight 71kg
Dimensions(L×W×H) Vertical: 580mm×550mm×950mm
* Test Condition: 1. Ambient temp.20℃±1℃,humidity75%±5%  2. No strong interference source nearby  3.Clean water circuit with distilled water 4. Refer to the precision of ten acceptable calibration test runs
