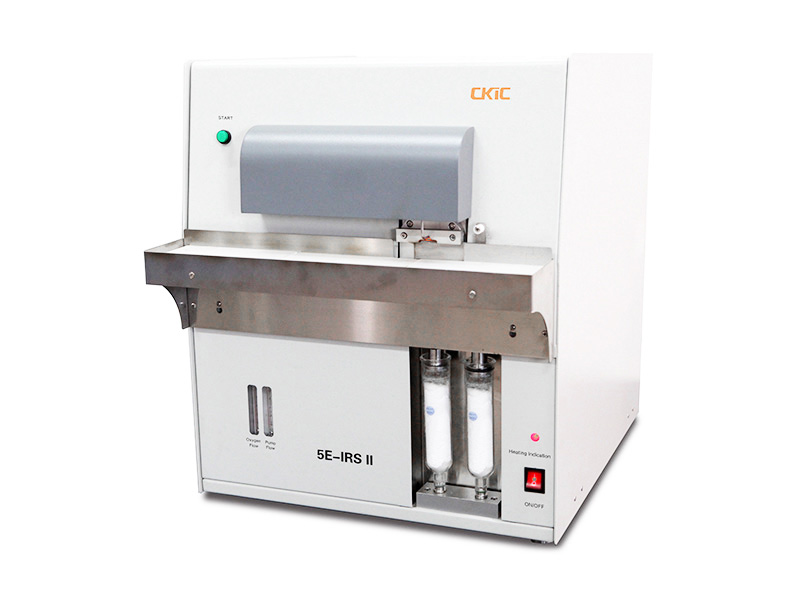

5E-IRSII Infrared Sulfur Analyzer

5E-IRSⅡ Infrared Sulfur Analyzer is used to determine the total sulfur content by infrared absorption, which is widely applied in power plants, coal mines, metallurgy, chemical industry ,commercial inspection, scientific research, etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case
Standard Configuration: Computer
Main analyzer
A/C adapter
H2O sorb reagent
Silica wool
Standard Reference Material(GBW)

Crucibles
Outer combustion tube
Inner combustion tube
Boat stop
O-ring kit
Tool kit


Features:
Stability and Accuracy 1. Top quality ultra-low drift infrared cell to ensure stability, precision and accuracy.
2. Reliable single Si-C spiral tube heating components.
3. Unique gas tightness structure to avoid the effect of SO2 in air.

Easy Operation
1. The sample mass can be automatically sent to the computer by balance connection.
2. Upgraded gas circuit design and reliable components to minimize the maintenance work.
3. Unique “Quick Start” Button to simplify the operation.

Model 5E-IRSII Automatic Infrared Sulfur Analyzer
Conforms to Method AS 1038.6.3.3, ASTM D1552, ASTM D3177, ASTM D4239, ASTM D5016,
ISO 19579, GB/T 25214, GB/T 28732, BS 1016
Max. Sample loading 1 sample per batch manually
Analysis Method Infrared absorption
Analysis Resolution 0.001% or 10ppm
Sulfur Range 0.01%-30% Customized range available
Analysis Time per Sample ≤120s
Analysis Temp. 1350℃
Temp. Control Precision* ±1℃
Sample Mass 200mg-400mg depends on sample condition
Power Supply Single phases, AC220V±10%, 50/60Hz, ≤4kW
Net Weight 60kg
Dimensions(L×W×H) 510mm×700mm×620mm
*  Varies with age of heating element
