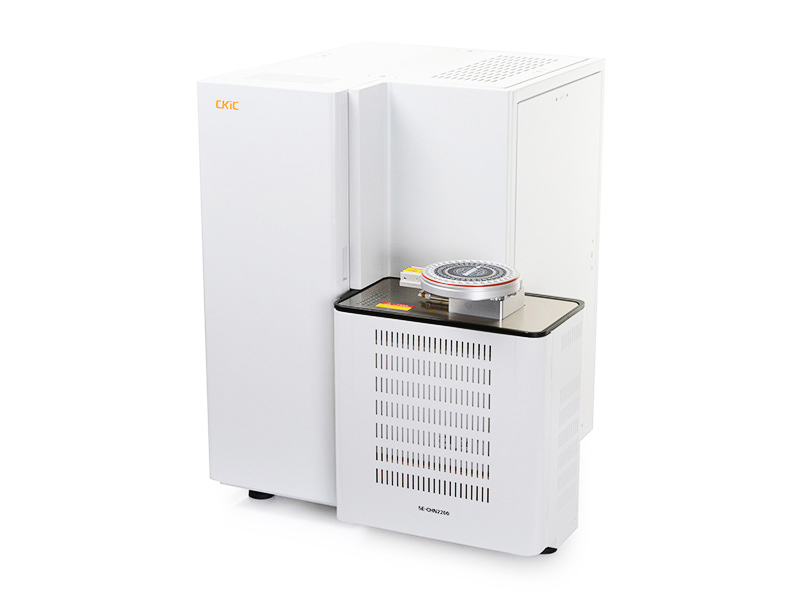

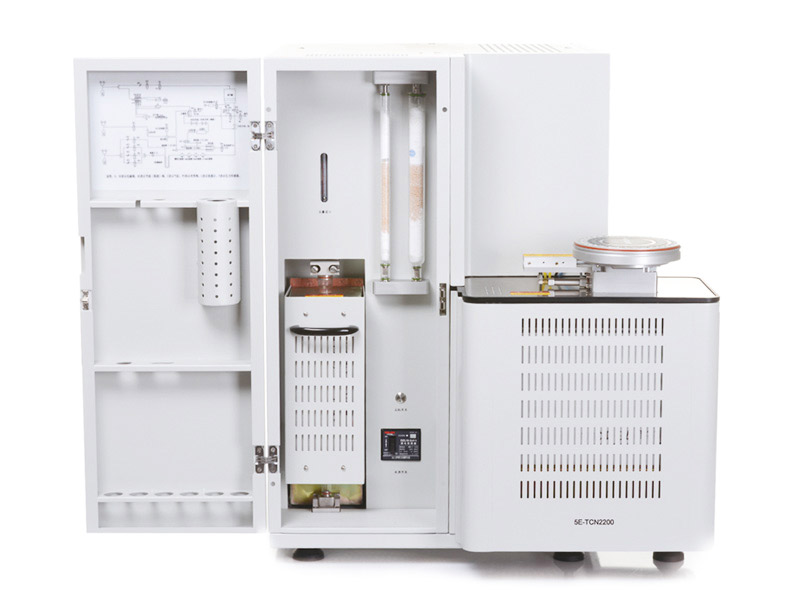

5E Series C/H/N Elemental Analyzer

5E Series C/H/N Elemental Analyzer is used to determine carbon, hydrogen, nitrogen content in solid and liquid material, such as coal, coke, oil, petroleum, biomass, fertilizer, plastic, food, hydrocarbons and plant tissue, leaves and tobacco, which is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, scientific research, food industry, education etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specifications
  • Spare parts
  • Case
Standard Configuration: Computer
Printer
Main analyzer
Furnace reagent
High purity copper
N-Catalyst
H2O sorb reagent
Standrad Reference Material(GBW)

Optional Configuration:
AR427 com-aid for liquid sample
Additional1 2 4 layers carousels
4cm x 4cm size tin-foil cup
Bigger size hole carousel

Models Available:
5E-CHN2200 to test Carbon, Hydrogen, Nitrogen content
5E-CH2200 to test Carbon, Hydrogen content
5E-TCN2200 to test Nitrogen content
5E-IRH2200 to test Hydrogen content
5E-IRC2200 to test Carbon content
5E-CN2200 to test Carbon content, Nitrogen content


CO2 sorb reagent

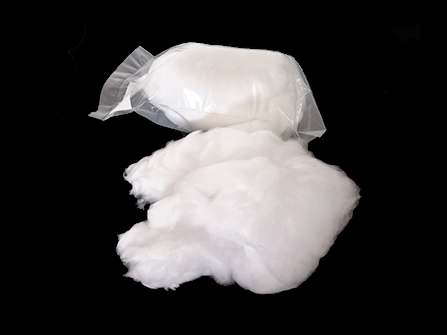

Silica wool
Lower crucible
Upper crucible
O-ring kit
Tool kit






Features:Maximum Efficiency

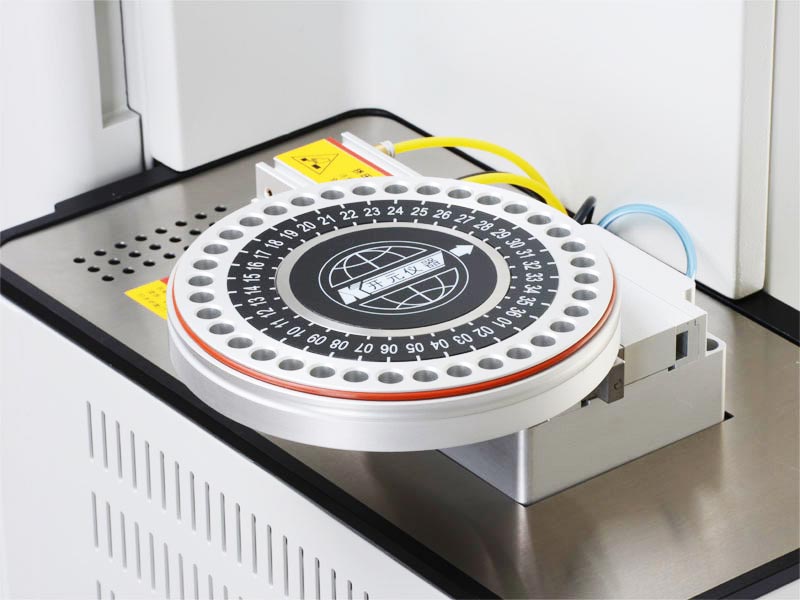

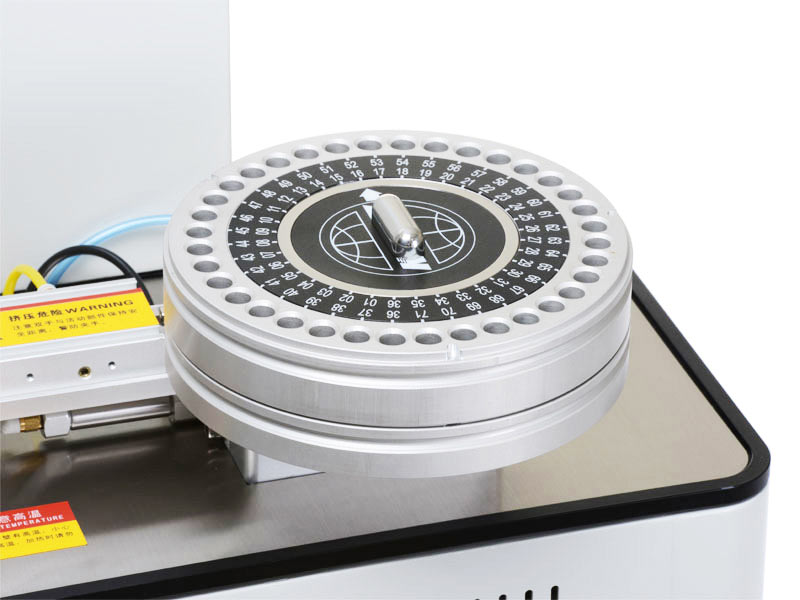

1. High throughput: standard auto loader for 35 samples per layer, stackable to 4 layers available.
2. Dual-stage furnace system with pure oxygen flow to ensure the complete combustion of all samples.

Good Environment Adaptability
1. Optimum gas circuit provides good gas tightness of the system.
2. O-ring free from heat resource.

Minimum Consumption
1. Independent detectors to determine C, H, N respectively. Analysis of CH mode and CHN mode can be chosen on software. (For 5E-CHN2200)
2. Saving time, gas and reagent: only 5.5ml blended gas needed to be analyzed.

Unattended Operation
The operator is limited to just adding sample to auto sample loader. Then the instrument will finish the test, cool down and shut off automatically.

Model 5E-CHN2200 Elemental Analyzer
Conforms to Method AS 1038.6.4, ASTM D5373, ASTM D5291,
ISO 16634, ISO 16948, ISO 29541, EN 15407,EN ISO 16948:2015-0,
GB/T 30728, GB/T 30733, UNI 15104, UNI CEN/TS 15407
Analysis Time 4-6 mins, depending on sample combustion conditions
Sampler Loader Stackable auto loader, up to 140 samples by 4 layers
Repeatability Carbon(Cad)≤0.45%, Hydrogen(Had)≤0.10%, Nitrogen(Nad)≤0.05%
Sample Mass Up to 1000mg, depending on sample matrix
Temp. Resolution 1
Gas Required* Helium, 99.99%, 0.25± 0.01 Mpa
Oxygen, 99.5%, 0.25± 0.01 Mpa
Nitrogen or compressed air, 0.25± 0.01 Mpa
Consumption Helium 200ml/min
Measurement Range Carbon: 0.02mg-150mg
Hydrogen: 0.1mg-12mg
Nitrogen: 0.04mg-50mg
Furnace Type Resistance furnace, max. temp 1050
Power Supply Single phase, AC220V ±10% , 50/60Hz, 5.5kW
Net Weight 110kg
Dimensions(L×W×H)
690mm×750mm×720mm
*Test Condition: If N≤0.5%, 99.995% high purity oxygen is required.
