  • CKIC 5E-CYP Cross-Belt Sampler

5E-CYP Cross-Belt Sampler

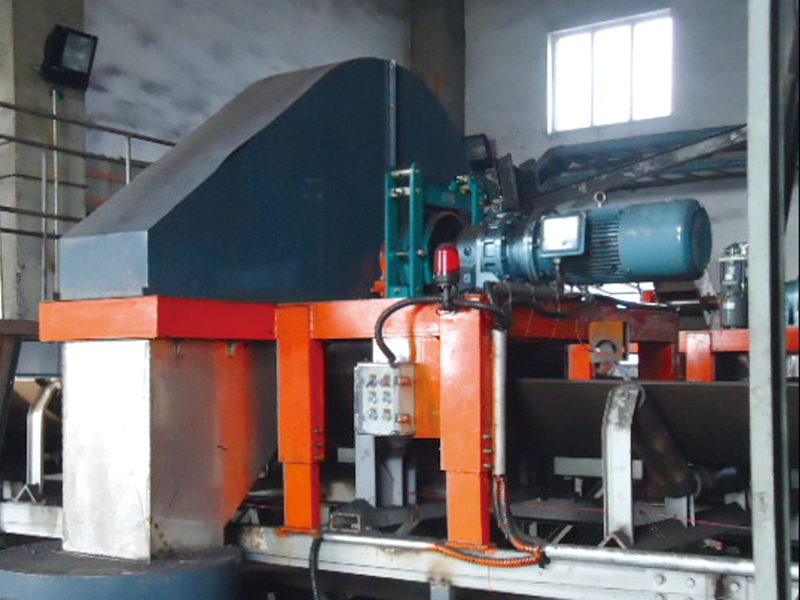

5E-CYP Cross-Belt Sampler is used for extracting samples from the moving streams on the middle position of the belt conveyor.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

Significance of Mechanical Sampling:
Full Section Sampling
Full section sampling or stratified full-section Sampling ensures that the sample is a true representative of bulk material.

Good Environment Adaptability
1. Optimum gas circuit provides good gas tightness of the system.
2. O-ring free from heat resource.

Random Sampling
Sampling points are selected by mechanical sampling system randomly to ensure that every portion of the sampling lot has the same chance to be sampled.

High Efficiency
Time saving compared with manual sampling.

Safety Operation
Indoor operation provides good working environment.

1. Mass-basis sampling and time-basis sampling method for choice.
2. Support Roller under the belt for a circular arc shape to make every cut smoothly.
3. Auto sensor available to detect sample stream for automatic sampling.
4. Reduction and division of the material by online sample preparation system is available if it it needed.
5. Control methods: Touch Screen Controller+PLC/Automatic/Semi-Auto/Manual.

Layout Drawing for Belt Sampler with Fully Automatic Sampler Preparation System:

Model 5E-CYP-Z Cross Belt Swing Sampler 5E-CYP-D Falling Stream Sample Cutter
Type Cross belt swing sampler Falling stream sample cutter
Conforms to Method GB/T 19494, ISO 13909 GB/T 19494, ISO 13909
Motor Power 10KW, 35KW(include sample preparation) 10KW, 35KW(include sample preparation)
Suitable Belt According to the actual conditions According to the actual conditions
Sampling Way Time base or Weight base Time base or Weight base
Sampling Method Rotating and Scraping Moving Hopper or Cone plate cutting type
Rotating Speed(mm) 2.5-3 times more than belt speed ≤1.5 m/s
Moisture Adaptability Total Moisture (as received basis≤14%) Total Moisture (as received basis≤14%)
Controlling Method PLC auto/semi-auto/manual PLC auto/semi-auto/manual
Granularity of sample ≤6 or ≤13 ≤6 or ≤13
Dividing Ratio Adjustable Adjustable

Different type of sampling head for bulk material (nominal top size ≤ 50mm) is as follows.

Sampling Head



Moisture Adaptability


Aperture of Cutter

Max. Sampling mass

Cross-Belt Sweep Type

Coal, Limestone, Pellet, Iron Ore, Zinc Power
