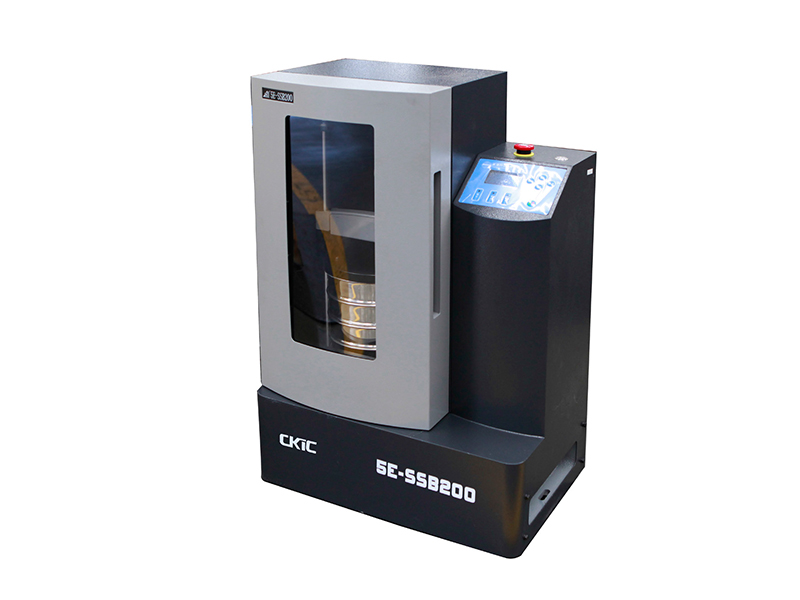

5E-SSB200 Sieving Shaker

5E-SSB200 Sieving Shaker is used for grade sieving of particulate materials, which is widely applied in power plants, coal mines, chemical industry, metallurgy, foodstuff and geology.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

Features:1. Effectively reduce dust leakage with dust cover.
2. Combined sieving function of horizontal shaking and vertical vibration.
3. Easy installation of sample sieve, easy to clean and no sample mixing.
4. Excellent sieving efficiency.
5. Available to store three modes.

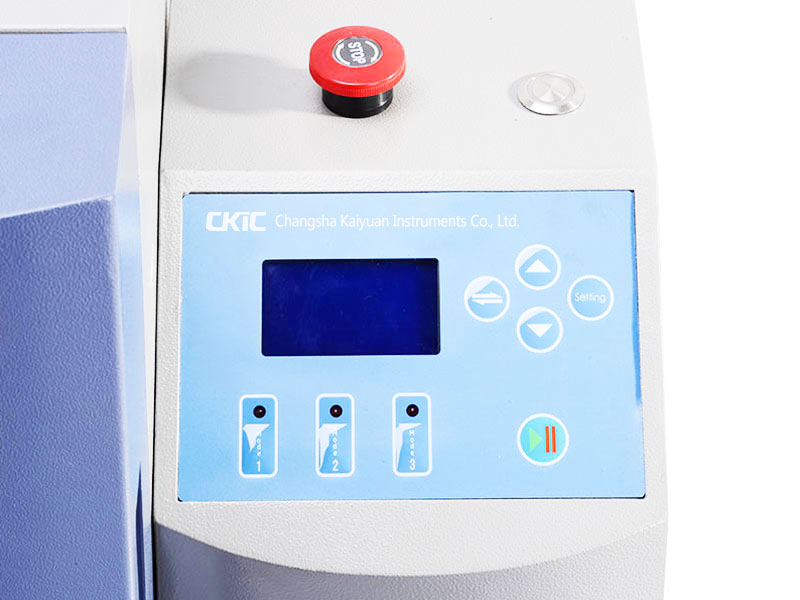

6. Screen display functions.

Model 5E-SSB200 Sieving Shaker
Sieve Size Available Ф200mm
Max. Sieve Layers 8
Sample Mass 200g
Sieving particle Size 6-0.045mm
Vibration Frequency (per minute) 147±2
Vibration Amplitude 10mm
Shaking Frequency (per minute) 221
Power Supply 3 phases, AC380V±10%, 50/60Hz, 400w
Noise ≤90dB
Net Weight 110kg
Dimensions (LxWxH) 605mm×385mm×908mm
