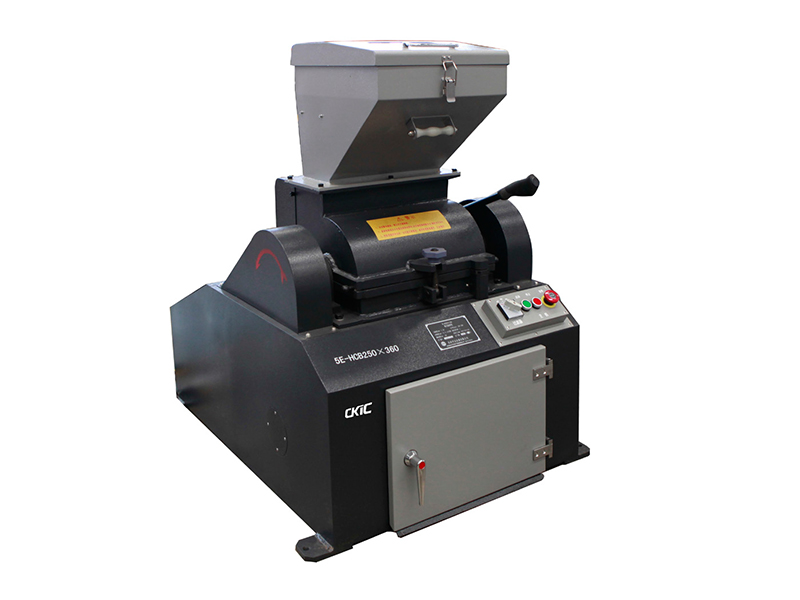

5E-HCB Series Hammer Crusher

5E-HCB Series Hammer Crusher is used for sample preparation of graininess material such as coal, limestone, mineral waste residue, oil shale etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

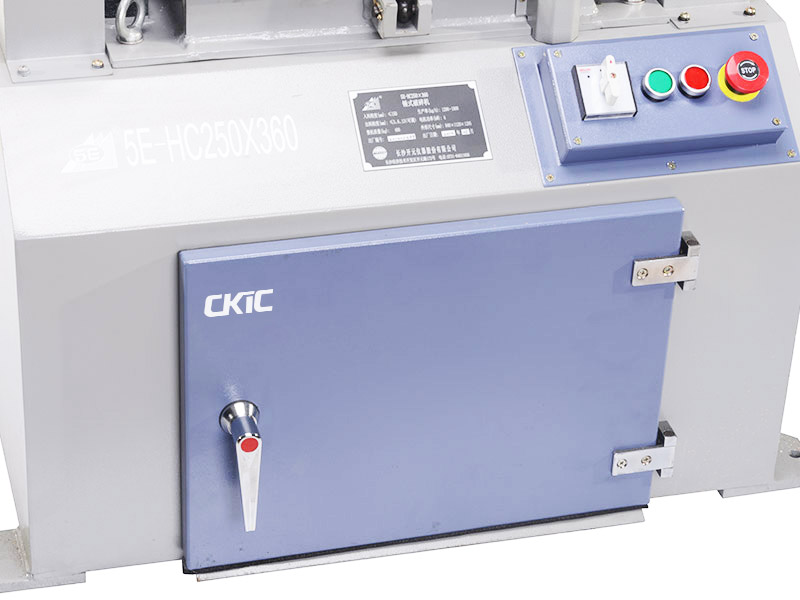

Features:1. Hermetic structure for improving the operation environment and reducing sample contamination.
2. Equipped with three kinds of sieve plate. Patent for quick sieve plate replacement.

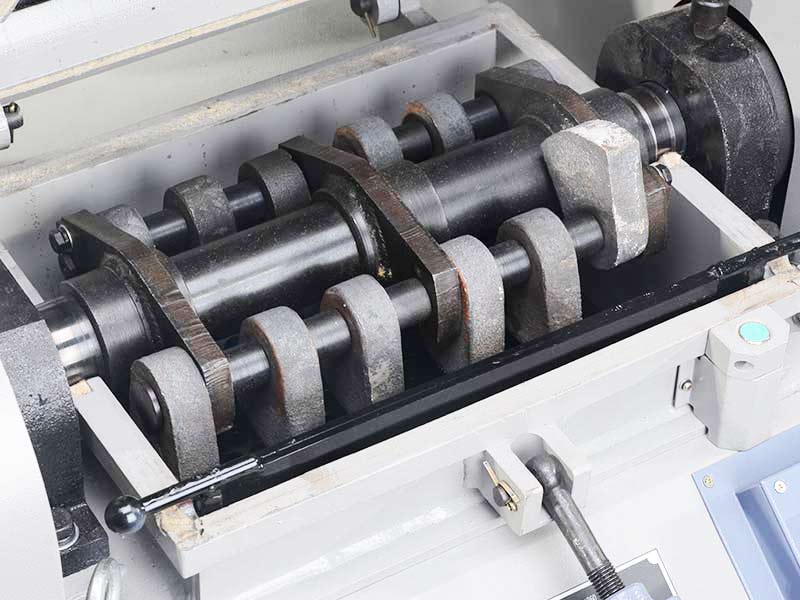

3. Unique crush chamber and fan-shape hammer design ensures the even discharging of sample.

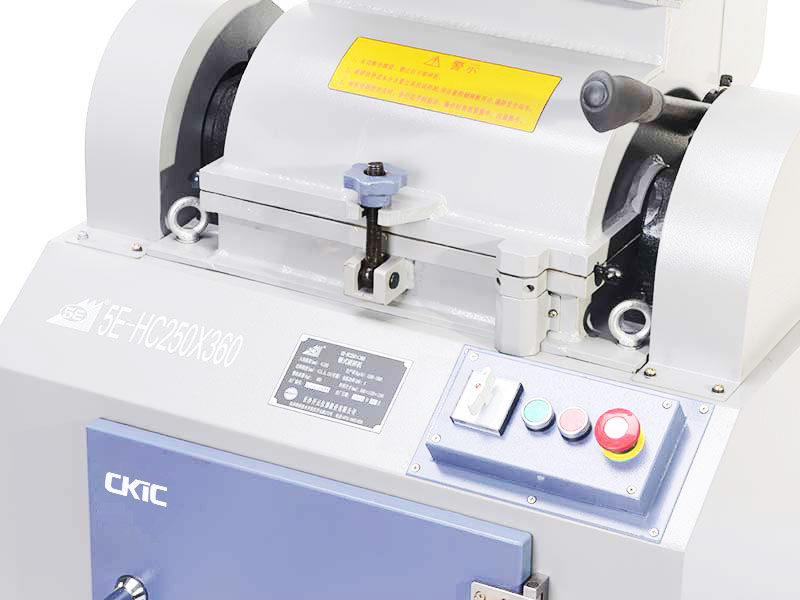

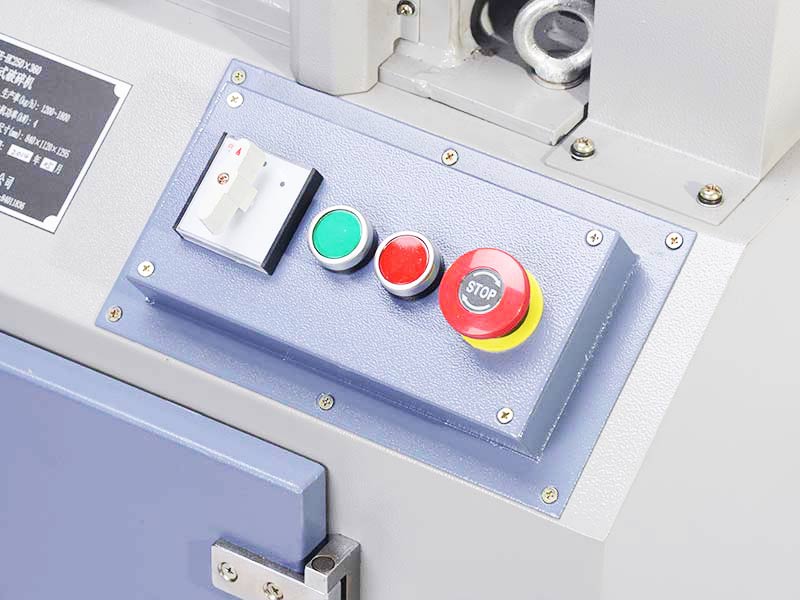

4. Improved safety with protection shielding and emergency button.
5. Durable crushing components decrease the maintenance cost.
6. Equipped with air filter ,prevent dust leakage efficiency.

Model 5E-HCB180×150 Hammer Crusher 5E-HCB250×360 Hammer Crusher
Feed Size ≤50mm ≤150mm
Discharge Size
≤1mm / ≤3mm / ≤6mm ≤3mm / ≤6mm / ≤13mm
Customized sieve hole size available
Moisture Adaptability ≤12% ≤12%
Approx.Hardness of Feeding Sample HRC45-52 HRC45-52
Throughput 300~600kg/h 1200~2000kg/h
Diameter of Crusher Chamber 180mm 250mm
Power Supply 3 phases, AC380V±10%, 50/60Hz, 1.5kW 3 phases, AC380V±10%, 50/60Hz , 4kW
Noise ≤85dB ≤90dB
Net Weight 150kg 300kg
Dimensions(L×W×H) 560mmx730mmx1080mm 1052mmx740mmx1129mm
