5E-AF4105 Ash Fusion Determinator

5E-AF4105 Ash Fusion Determinator is used to determine ash cone deformation temperatures in coal ash, biomass ash and mold powders automatically, which are critical to the boiler functioning properly and to avoid slagging and fouling.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case
Standard Configuration: Computer
Main analyzer
A/C adapter
Ash cone plate
Activated carbon

Combustion cup
Duab kit

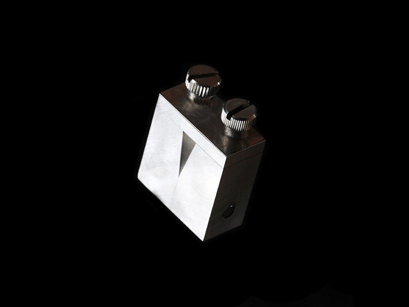

Ash cone module
Gasket kit
Tool kit
Optional Configuration:
5 samples ash cone plate (ISO std)

Features:1. Determine four critical temperatures (DT, ST, HT, FT) automatically.
2. Unique furnace design with hermetic structure,quantitative gas tightnesstest could be performed inside chamber.
3. Optimized sample-loader with high reliability.
4. 3.2Mega-pixel professional camera provides high resolution image.
5. Excellent image processing method and critical temperature measurement to ensure precise result.
6. Automatically check the gas leakage with auditory alarm and gas flow terminated if triggered.
7. Auto power-off after analysis ,shorten operator's stand-by time and prolong service life of high temperature parts.

Model 5E-AF4105 Ash Fusibility Determinator
Conforms to Method AS 1038-1995, ASTM D1857/D1857M/E935/935M, ISO 540,
UNI CEN/TS 15370,
GB/T 219, GB/T 30726, BS 1060-1995
Max. Sample loading samples
Max. Temp. Up to 1600
Temp. Control Precision ±1
Camera pixel 3.2 Mega-pixel
Image Frame 1 frame per 2
Heating Rate 4℃/min-15℃/min adjustable
Analysis Atmosphere Oxidizing Atmosphere / Reducing Atmosphere
Power Supply Single phase, AC220V±10%, 50/60Hz, ≤3.2kW
Net Weight 130kg
Dimension(mm) 585mm×530mm×1180mm
