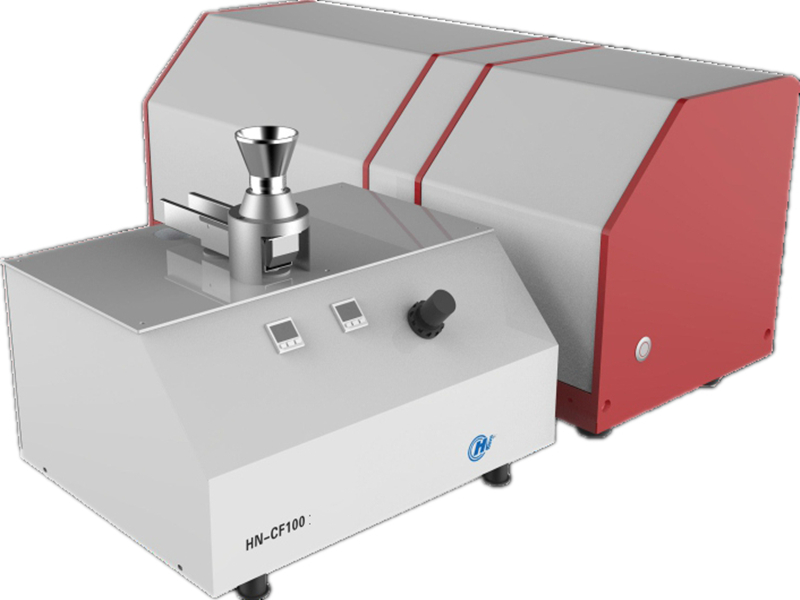

HN-CF100 Fineness Analyzer

HN-CF100 Fineness Analyzer is suitable for a variety of laboratories and industrial corporation: Nonmetallic powder: coal, cement, limestone, fly ash, calcium carbonate, silicone dioxide, magnesium oxide and so on. Metallic powder: aluminum, iron, zinc, rare earth metal, alloy and so on. Others: abrasive materials, silicon carbide, flour, lithium cell materials, porcelain ingredients, coating materials and so on.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Introduction
  • Specification
  • Spare parts
  • Case
Application:
Suitable for a variety of laboratories and industrial corporation:
Nonmetallic powder: coal, cement, limestone, fly ash, calcium carbonate, silicone dioxide, magnesium oxide and so on.
Metallic powder: aluminum, iron, zinc, rare earth metal, alloy and so on.
Others: abrasive materials, silicon carbide, flour, lithium cell materials, porcelain ingredients, coating materials and so on.


Principle:
HN-CF100 Fineness Analyzer capitalize on light scattering of particles and smaller the particle size is, wider the scattering range is. Multielement detector will then be used to record scattering light and by adopting specific optical module, the system can calculate particle percentage of different size and display particle layout in two- or three-dimensional form.





Features

Compared with traditional sieving method, HN-CF100 is quicker, simpler, easier and preciser choice.
1. Wet dispersion is able to dismiss the interference of bubble.
2. Dispersion pressure is adjustable to prevent crushing samples.
3. From sample feeding to analysis result, it only takes 20sec.One-press operation, easy and simple.
4. Direct spray in dispersion system make sure the sample will not cluster again.
5. No measurement window to prevent dust pollution on lens from affecting test result.
6. Autofocus system to guarantee the analyzer is always on optimal condition.
7. Equipped with SOP function and manual operation mode.
8. Equipped with negative pressure detection of dust collector to render dust leakage impossible.
9. Intelligent software with clearly-organized interface, simple operation. Calculation based on Mie theory will produce reliable and accurate results.



Model HN-CF100 Fineness Analyzer
Conforms to Method GB/T 19077.1-2016, ISO 13320:2009,
Principle Mie scattering and Fraunhofer diffraction
Analysis Range 0.5-500μm
Precision RSD>1%(certified material D50)
Optical System Solid-state laser(650nm)
Analysis Time 20sec from injecting compressed air, sample feeding, analysis to purging
Sample Mass About 10mg-4g, depending on sample particle size
Distribution Medium Compulsive distribution by purging compressed air
Sample Collection Negative pressure suction using vacuum cleaner
Environment 25±10℃, relative humidity≤85%(no condensation)
Power 220V/50Hz, power<2000W
Dimensions 900×800×500mm
Weight 60Kg
