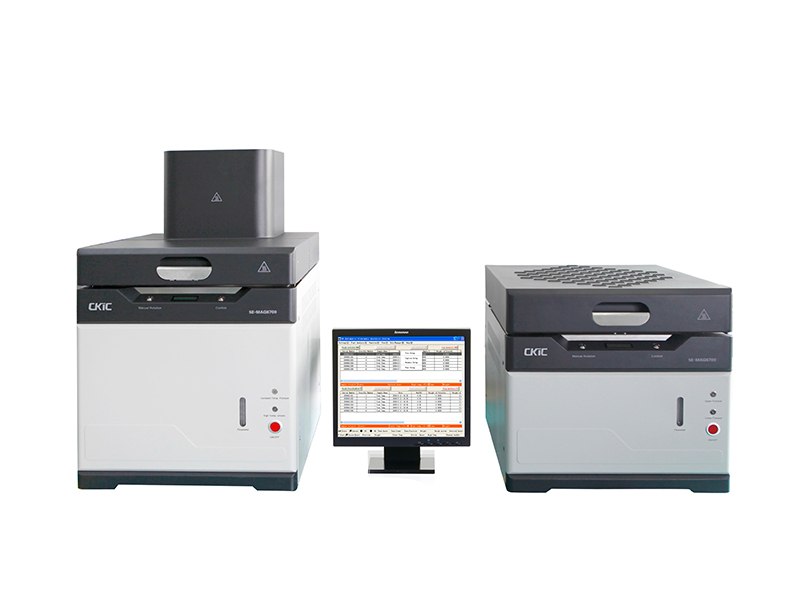

5E-MAG6700 Proximate Analyzer - TGA

5E-MAG6700 Automatic Proximate Analyzer (also called Thermogravimetric Analyzer) is used to determine the moisture, ash, volatile matter in coal, coke, biomass, limestone and iron ore, food and feedstuffs by thermogravimetric method. It can also determine residual ash and slag combustibles in accordance with ASTM, which is widely applied in power plants, coal mines, metallurgy, food industry, chemical industry, commercial inspection, scientific research, education, etc.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case
Standard Configuration: Computer
Main analyzer
Air compressor
Crucibles
Weighing rod base

Weighing road
Three-core power socket and plug/20A
Crucible lid for volatile matter
Glass spoon(small size)
Standard Reference Material(GBW)
Tool kit


Features:

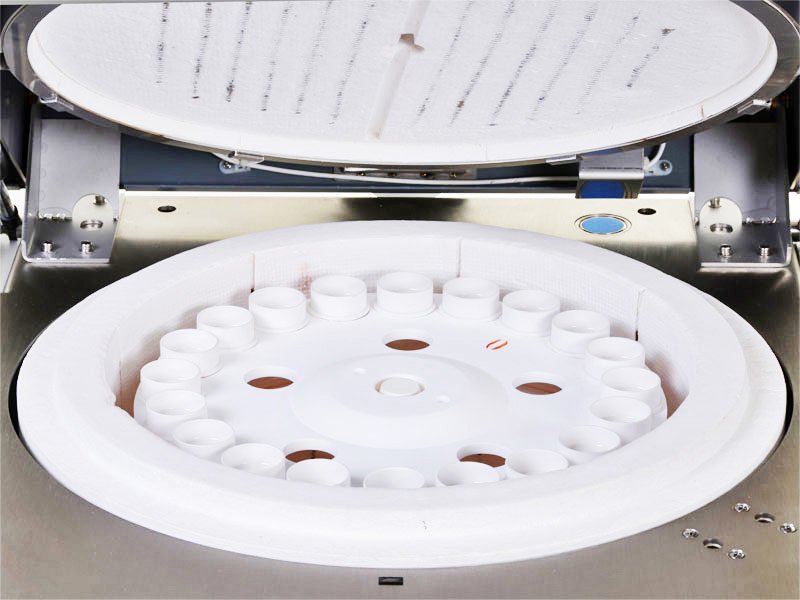

High Efficiency1. Up to 19 samples can be determined within 2 hours for moisture, ash, volatile matter analysis and to calculate the fixed carbon.
2. Embedded furnace wire is adopted, which makes the operation more safer with more uniform furnace temperature.
3. Double control (One PC controls two furnaces) is available.


High Accuracy1. Thermogravimetric technology with blank crucible calibration in the same atmosphere to ensure weighing accuracy.
2. Adjustable ramp rate and real-time display for thermal weight curve, manage data and graph seamlessly.
3. MAC 6710 uses sheathed thermocouple, which has strong corrosion resistance and longer service life.

Easy Operation
1. Furnace cover can be opened and closed automatically by pneumatic system, no heat hazard and labor saving.
2. Real time display of balance reading, which makes it convenient to control the precision of sample weight.
3. Wide application for limestone, cement, iron ore.

Model 5E-MAG6700 Proximate Analyzer -TGA
Comforms to Method ASTM D3173/D3174/D3175/DD7582, ISO 17246, GB/T 30732, GB/T 212, ISO 18123/18122/18134, ISO 11722, ISO 1171
Max. Sample Loading 19
Furnace Dual furnace
Analysis Time ≤120mins for 19 samples
Sample Mass 0.8-1.2g recommended / up to 5g
Temp. Range Up to 1050
Temp. Control Precision ±2
Precision of Balance 0.0001g
Power Supply Single phase, AC220±10%, 50/60Hz,  Part I≤4kW, Part II≤5kW
Net weight Part I:80kg            Part II:50kg
Dimensions(L×W×H) Part I: 550mm×580mm×890mm          Part II: 550mm×580mm×530mm
