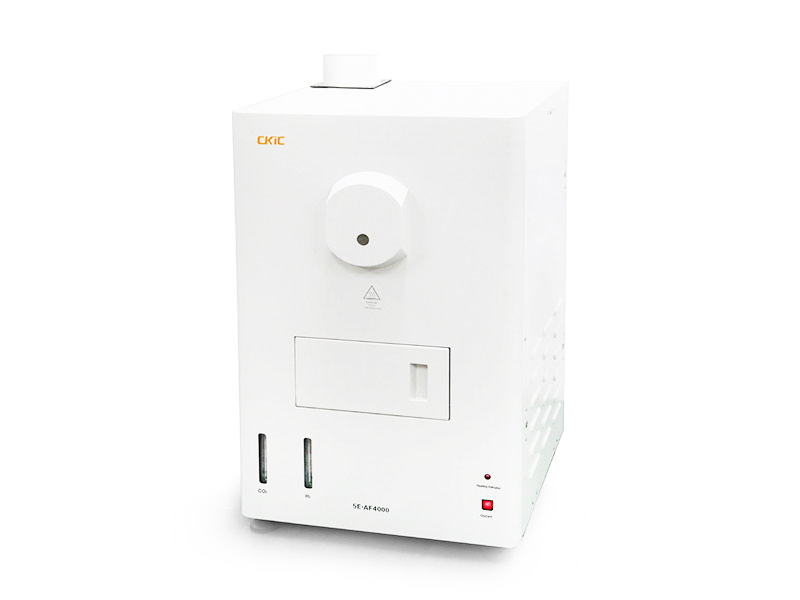

5E-AF3000 Ash Fusion Determinator | Ash Fusion Determinator

Standard Configuration: Computer
Main analyzer
A/C adapter
Ash cone plate
Activated carbon
Graphite

Dextrine
Magnesia
Combustion cup
Duab kit
Ash cone module
Gasket kit
Tool kit

Optional Configuration:
7 samples ash cone plate (ISO std)

Features:1. Determine four critical temperatures (DT, ST, HT, FT) automatically.
2. 3.2Mega-pixel professional camera provides high resolution image.

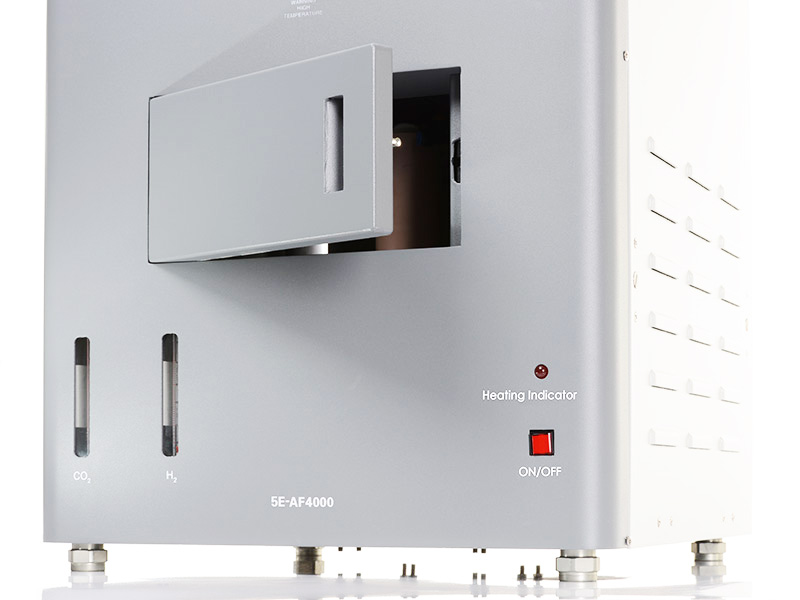

3. Durable heating element with Si-Mo material and ergonomic vertical furnace design ensures stable working temperature.
4. Video clips available for replaying, which makes automatic identification and manually identification available.
5. Atmosphere simulation by using graphite and activated carbon, minimize the operation cost without gas consumption.

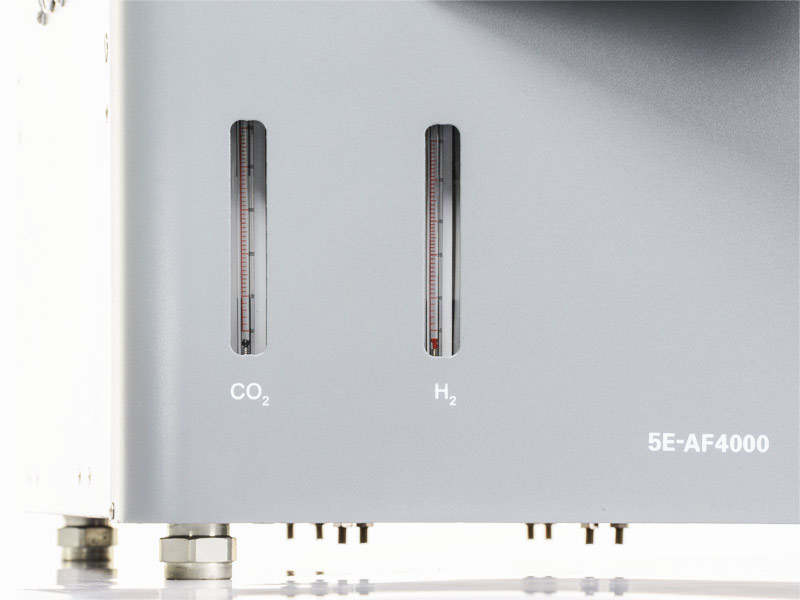

6. Automatically check the gas leakage with auditory alarm and gas flow terminated if triggered.

Model	5E-AF3000 Ash Fusibility Determinator
Conforms to Method	AS 1038-1995, ASTM D1857/D1857M/E935/935M, ISO 540, UNI CEN/TS 15370, GB/T 219, GB/T 30726, BS 1060-1995
Max. Sample loading	GB and ASTM: 5 Samples ISO: 7 Samples
Max. Temp.	Up to 1600℃
Temp. Control Precision	±1℃
Camera pixel	3.2 Mega-pixel
Image Frame	1 frame per 2℃
Heating Rate	4℃/min-20℃/min adjustable
Analysis Atmosphere	Oxidizing Atmosphere / Reducing Atmosphere
Power Supply	Single phase, AC220V±10%, 50/60Hz, ≤3.5kW
Net Weight	65kg
Dimension(mm)	480mm×470mm×740mm
