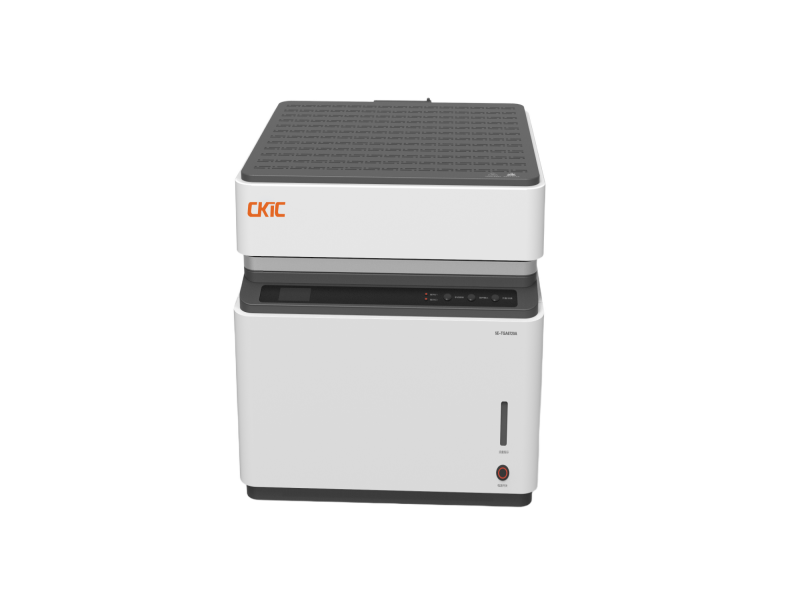

5E-TGA6720A Thermogravimetric Analyzer-TGA^NEW!

The 5E-TGA6720A Thermogravimetric Analyzer is the newly upgraded model, designed for the automated determination of moisture, ash, and volatile matter in coal, coke, petroleum coke, biofuel, etc. Additionally, it can determine the carbon content in fly ash and bottom ash, as well as the loss on ignition (LOI) in cement and ore.

Get a Quote Online Inquiry Send E-mail PDF Download

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

Features
Specifications
Spare parts
Case

Automation and Efficiency
1. For moisture and ash testing, the sample should be spread out with a density not exceeding 0.1g/cm².
2. Without requiring an external gas source to operate the furnace cover. After analysis, it opens automatically and is covered by strong airflow, enabling a rapid transition to the next round of analysis.
3. 24 samples per analysis for the determination of moisture, ash and volatile matter with up to 2 batches completed within 8 hours.

Improved Safety
1. Equipped with a double thermocouple for enhanced heating protection, ensuring a more uniform temperature field, along with magnetic induction positioning.
2. Offer a range of functions, including crucible re-weighing, sample re-weighing, recovery after a power outage, out-of-olerance warning and fault diagnosis.

Centralized Management
1. Traceable testing data and processes, with QC charts generated from QC sample data, and comprehensive recording of parameters for CNAS compliance.
2. Provide real-time information on furnace temperature, sample weight, sample name, and hole position in a 4.3 inch color display.
3. Enabling the centralized control and maintenance management of up to five sets of proximate analyzers through a single computer and software.

Eco Friendliness
Equipped with an exhaust treatment system ,reducting dust, odor, and SO₂ emissions by over 90%.

Model	5E-TGA6720A
Analysis Content	Moisture,ash,volatile matter
Conforms to Method	GB/T 30732,GB/T 2001, GB/T 28731, ISO 17246, ASTM D7582, ISO 18123/18122/18134, ISO 11722, ISO 1171
Max. Sample Loading	24 samples per batch
Analysis Time	Rapid method:about 150 min Classical method:about 250 min (*Depending on the sample)
Sample Mass	0.5-1.5g
Balance Precision	0.1mg
Requirements for Moisture&Ash Crucible	Not exceed 0.1g/cm² in the base area for the 1g sample after leveling
Max. Temperature	1050℃
Temp. Control Precision	±1℃
Gas Requirements	The system features: Inlets for air, O2, and N2. Integrated passive ventilation via an exhaust fan (availble on Moisture and Ash furnace). A built-in air pump for pneumatic door operation. It can function without an external gas source if the sample properties allow.
Exhaust Gas Treatmemnt	Able to reduce dust, odor, and SO₂ emissions by over 90% (*optional)
Operating Conditions	Ambient temperature:0-40℃ Ambientm humidity:<85% No strong vibration,strong electromagnetic interference and corrosive gas.
Communication Network	Ethernet
Power Supply	AC220±22V, 50/60Hz, ≤ 5 kW
Dimensions(L×W×H)	655×795×570 (mm)
