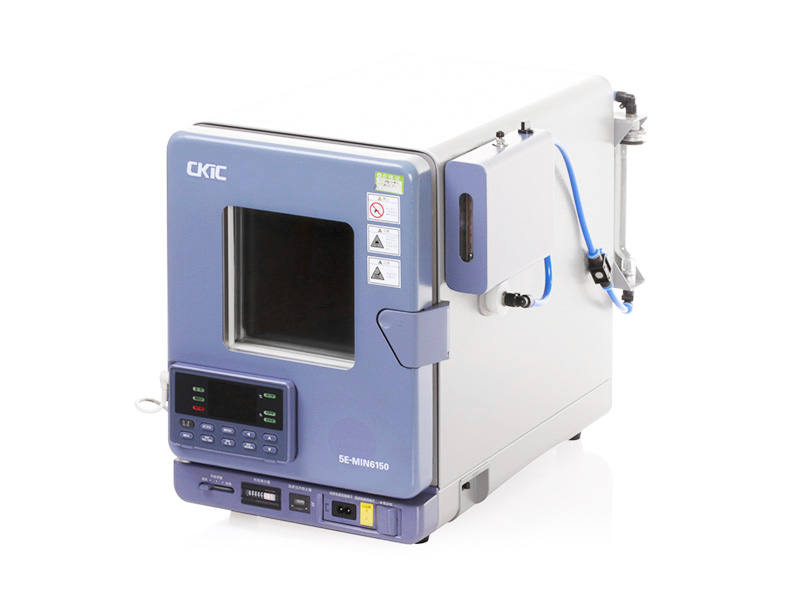

5E-MIN6150 Mini Moisture Oven | Proximate Analyzer

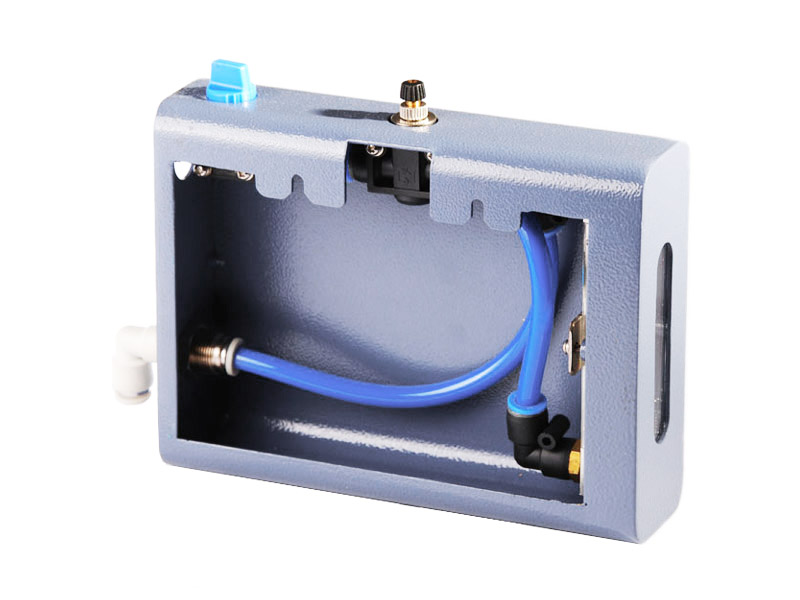

Standard Configuration:Nitrogen introducing device

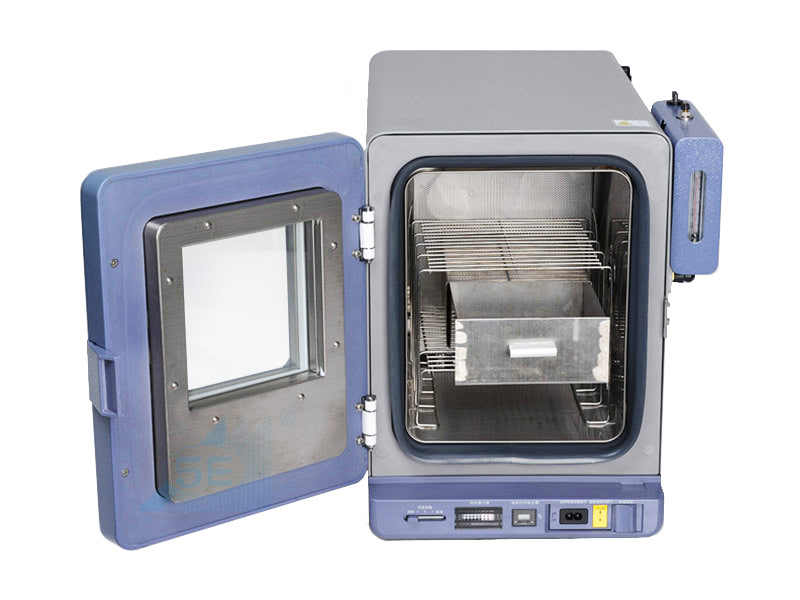

Tray
Gas regulator

Features:Easy Operation
1. Mini instrument with compact structure.
2. Dual function: Air introduction and Nitrogen introduction are available for choice.
3. Automatic work time can be set within 100 hours for unattended operation.
4. Equipped with stainless heating tube, stainless chamber and automatic ventilation port.

High Efficiency
High temperature control precision, quick heating speed and good thermal insulation performance.

High Safety
Equipped with intelligent control system, electric leakage protection and over temperature protection device.

Cost Saving
Small chamber could save the nitrogen gas and keep the balanced temperature.

Model	5E-MIN6150 Mini Moisture Oven
Comforms to Method	AS 1038.1, ASTM D3302/D3302M/D7582/E871, UNI CEN/TS 15414, BS EN ISO18134, ISO589, GB/T 211, GB/T 212, GB/T 28731, GB/T 28733, GB/T 30732
Internal Capacity	15L
Exchange Frequency	15 times per hour
Constant Temp.Range	20℃ above the ambient Temp-200℃
Temp.Fluctuation	±0.3℃
Full Load Electric Current	4.5A
Power Supply	Single phase, AC220V±10%, 50/60Hz, ≤1kW
Net weight	26kg
Dimensions of Nitrogen Box(L×W×H)	250mm×220mm×280mm
Dimensions(L×W×H)	540mm×300mm×435mm
