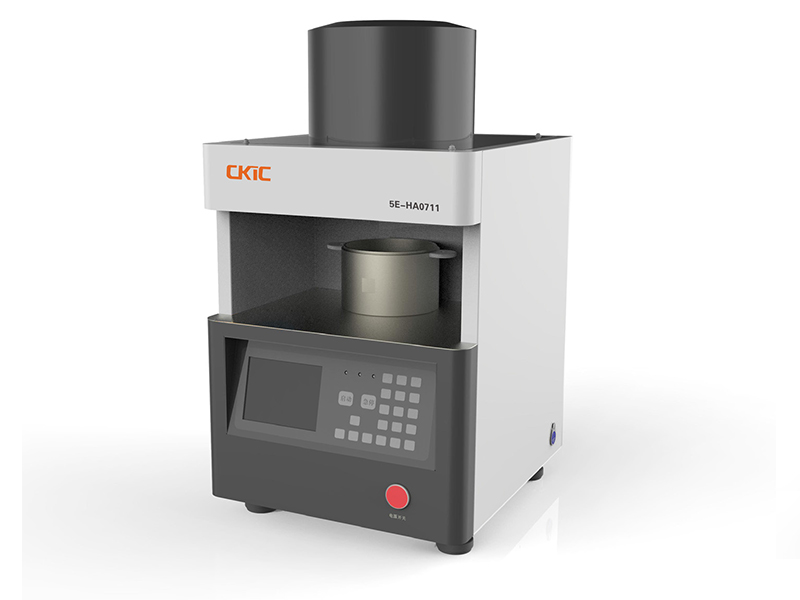

5E-HA0711 Hardgrove Grindability Index Tester | Hardgrove Grindability Index Tester

Standard Configuration:
Main analyzer
Grinding bowl
Grinding balls
Standrad Reference Material(GBW)

Sample loading assisting tools
Weights
Sieves (Available for ASTM/GB/ISO standard)

Features:High Automation
1. Auto-lifting of grinding bowl, auto-loading weights, auto-counting of revolution.
2. The operation is limited to only put the sample into the bowl for grinding, screen out the samples before grinding and after grinding, and enter the mass of two screen residues, then the HGI value will be calculated and printed out automatically.

Compact Structure
1. Built-in motor ensures the safety of operators, provides low noise environments.
2. Small space occupied and no moving parts exposed by integrated structure.

Intelligent Control
1. Real time displaying of working status and working process with intelligent control.
2. Built-in program of linear calibration curve, realizes automatic calculation.

Model	5E-HA0711 Hardgrove Grindability Index Tester
Comforms to Method	ASTM D409/409M, ISO 5074, GB/T 2565
Spindle Speed of Determinator	20±1r/min
Revolution of Determinator	60r
Mass of Test Sample	50g
Vertical Pressure of Grinding	284±2N
Diameter of Grinding Steel Ball	Φ25.4mm
Working Noise	＜65dB
Sample Size	0.63mm-1.25mm
Power Supply	Single phase, AC220±10%, 50/60Hz, 225W
Net Weight	85kg
Dimensions (L×W×H)	385mm×695mm×435mm
Additional Tools Required: Sieve according to relative standards.Sieving Shaker and Crusher.
