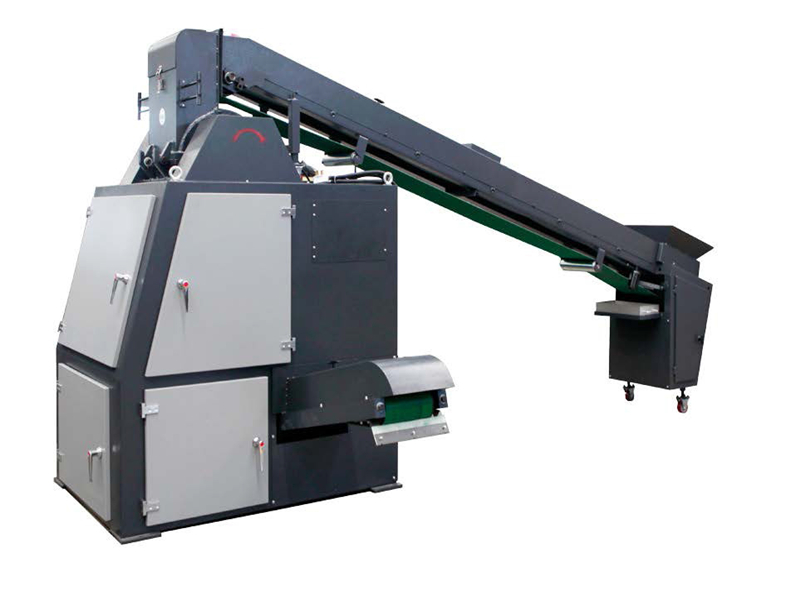

5E-PA Series Sample Preparation Combination Apparatus^NEW!

5E-PA Series Sample Preparation Combination Apparatus is used to do the sample preparation for graininess material such as coal, mineral etc. Not only crushing work is available, it also provides the dividing function. It is widely used in power industry, coal industry, chemical industry, metallurgy, building material industry and geology.

Get a Quote Online Inquiry Send E-mail PDF Download

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

Features
Specification
Spare parts
Case

Features:1. Special crushing chamber is with fan-shaped hammer to reduce the moisture loss. Equipped with 13mm, 6 mm sieving plate. The crusher works well and discharge particle size is even.
2. Crushing and dividing system is combined together by the integrated mechanical drive design.
3. Complete hermetic welding techniques ensure dust free.
4. Feeding sample size is even. Equipped with permanent magnetic de-ironing separator ensures safe running.
5. Easy accessible doors for convenient cleaning and easy maintenance.

Model	5E-PA2×2	5E-PAB2×2
Method	Two grades for crushing, Two grades for dividing
Feed Size(mm)	≤150
Discharge Size(mm)	First discharge size ≤6, ≤13, Second discharge size 1-6 adjustable
Moisture Adaptability	≤12%
Productivity(kg/h)	1300-1800
Division Ratio	1/8, 1/16 adjustable
Power Supply	3 phases, AC380V±10%, 50Hz,12kW
Discharging Belt Conveyor	No	Yes
Net Weight	1100kg	1300kg
Dimensions(L×W×H)	3794mmx1030mmx1864mm	3794mmx1690mmx1864mm
