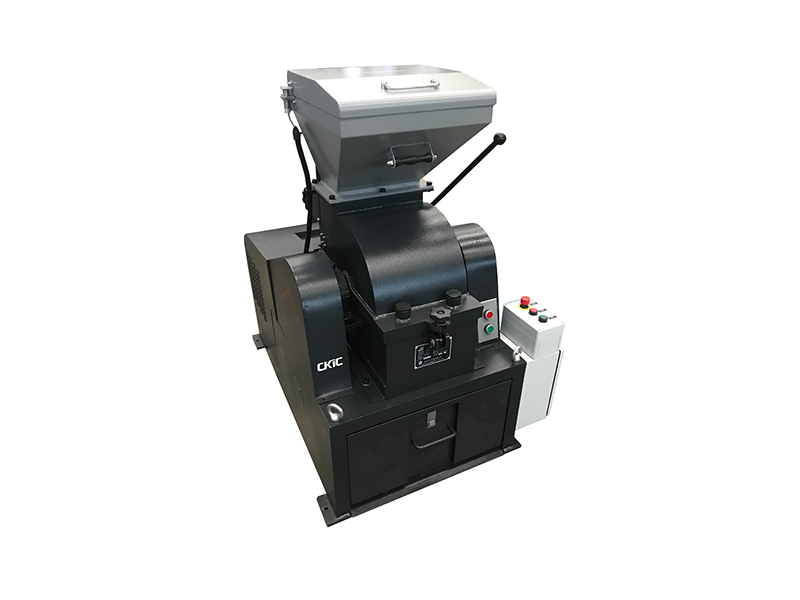

5E-HCA400×260 Humid Coal Hammer Crusher | Sample Preparation Equipment

Features:1. Design of vibrating sieve plate structure leads to high moisture adaptability and less moisture loss to avoid blocking.
2. Hermetic structure improving the operation environment and easy for cleaning.
3. Equipped with 13mm and 6mm sieve plate, the discharge size is even and good.
4. Good safety with the transmission protection design.
5. Durable materials for hammer decrease the maintenance cost.

Model	5E-HCA400×260 Humid Coal Hammer Crusher
Feed Size	≤150mm
Discharge Size	≤6mm / ≤13mm
Discharge Size	Customized sieve hole size available
Moisture Adaptability	≤20%
Throughput	1200-2200kg/h
Noise	≤95dB
Power Supply	3 phases, AC380V±10%, 50/60Hz, 5.5kW
Net Weight	350kg
Dimensions(L×W×H)	730mmx1120mmx1200mm

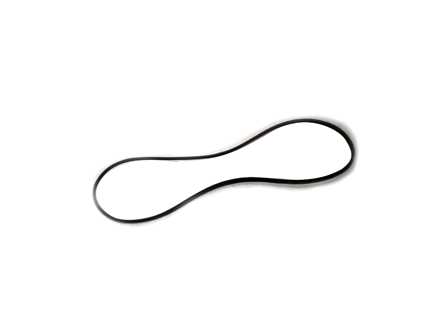

V-belt

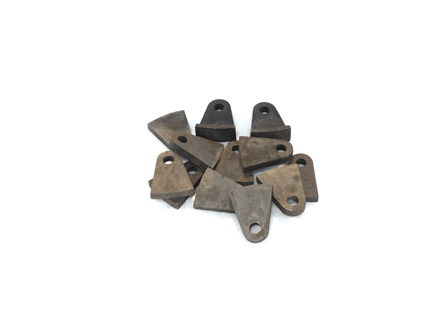

Hammer assembly

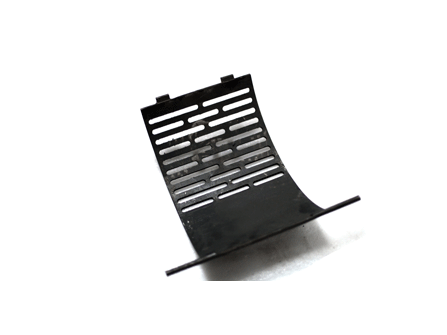

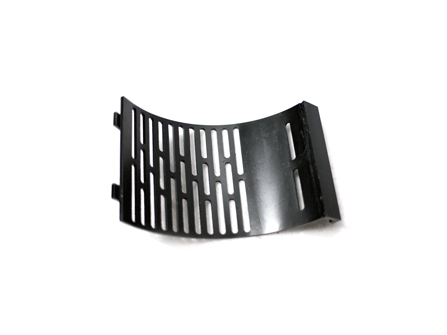

6mm sieve plate

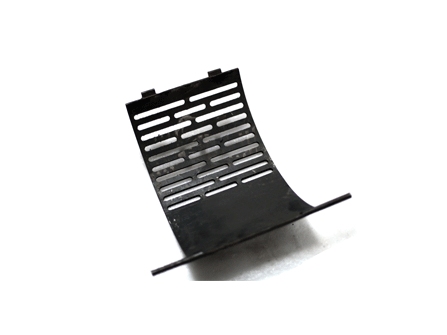

13mm sieve plate

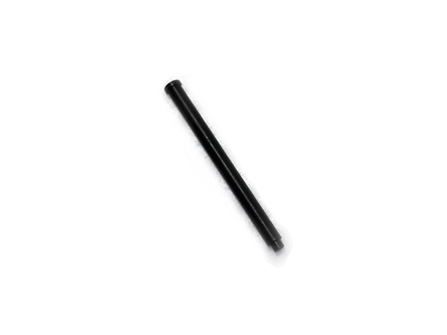

Hammer shaft
6mm sieve plate

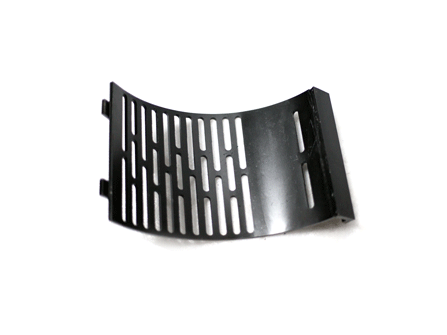

13mm sieve plate

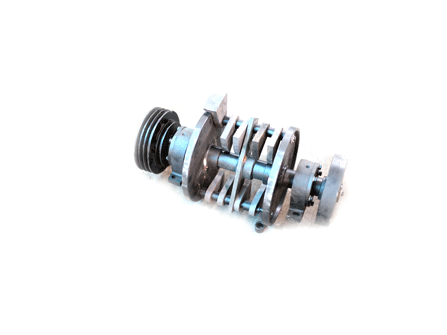

Rotor assembly

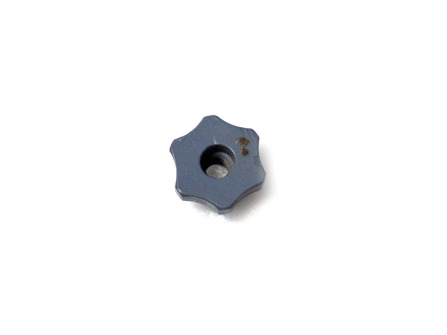

Handle

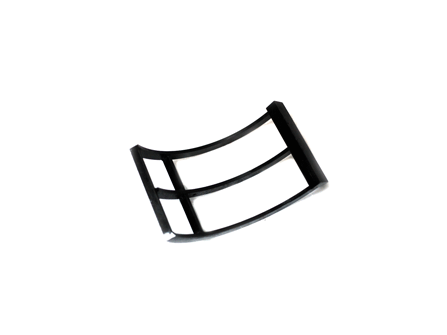

Sieve plate holder
