  • CKIC 5E-AF42 Series Ash Fusion Determinator

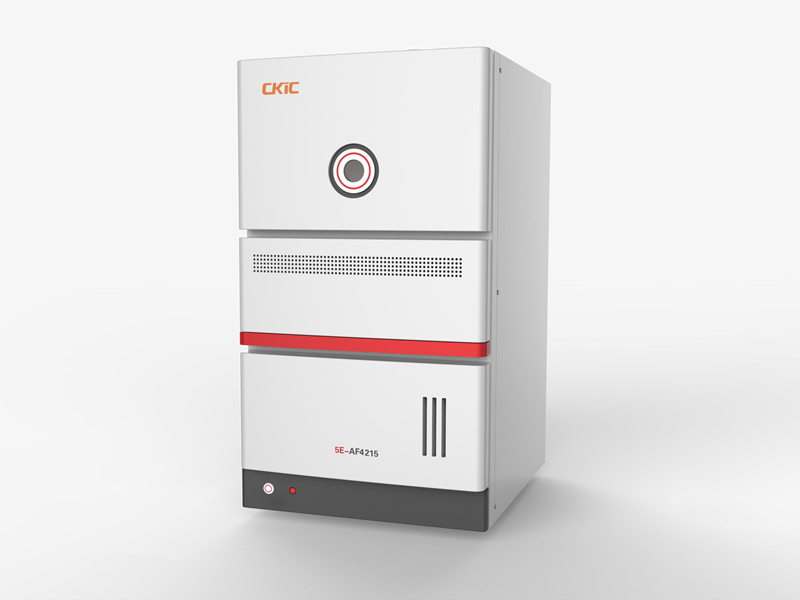

5E-AF42 Series Ash Fusion DeterminatorNEW!

5E-AF42 Series Ash Fusion Determinator automatically monitors cone deformation temperatures in coal ash, biomass ash and mold powders automatically, which are critical to proper boiler functioning and to avoid slagging and fouling.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case
Standard Configuration: Computer
Main analyzer
A/C adapter
Ash cone plate
Activated carbon
Graphite
Standard Reference Material(GBW)

Dextrine
Magnesia
Combustion cup
Duab kit
Ash cone module
Gasket kit
Tool kit

Models Available

5E-AF4205 5 Samples
5E-AF4210 10 Samples
5E-AF4215 15 Samples


Features:
Unique Structure for easy upgrade
5-15 samples can be tested per batch accordingly to different models, capable of further expansion of sample quantity.

High Automation
1. Optimized sample-loader with high reliability.
2. Auto power-off after analysis, shorten operator's stand-by time and prolong service life of high temperature parts.
3. Patented positive pressure dust removal device ensure zero maintenance of heat insulation glass.
4. Optional Analysis Atmosphere: CO and CO2 or H2 and CO2 mixed gas, or carbon envelope method can be selected for weak oxidizing atmosphere, strong oxidizing atmosphere, and weak reducing atmosphere.
5. Friendly human-computer interaction interface and multi-point capacitive touch technology provide user an excellent experience.

High Precision
1. 1.3 Mega-pixel professional camera and self-developed intelligent image recognition algorithm can automatically
recognize DT, ST, HT, and FT with reliable and accurate analysis result.
2. 5E-AF42 Series Ash Fusion Determinator owns 4 Spectrum Lighting Analysis Technologies, being in the leading position of the industry, which can identify the characteristics of the ash cone from normal temperature to the maximum temperature.

High Safety
1. Patented furnace design with hermetic structure, quantitative gas tightness test could be performed inside chamber.
2. Automatically check the gas leakage with auditory alarm and gas flow terminated if triggered.
3. Real-time monitor the exhaust discharging to improve the working efficiency of fan.

Model 5E-AF42 Series Ash Fusibility Determinator
Conforms to Method AS 1038-1995, ASTM D1857/D1857M/E935/935M, ISO 540, ISO21404
UNI CEN/TS 15370,
GB/T 219, GB/T 30726, BS 1060-1995
Max. Sample loading 5-15 samples according to different models
Max. Temp. Up to 1600
Temp. Control Precision ±1
Camera pixel 3.2 Mega-pixel
Image Frame 1 frame per 2
Heating Rate 4℃/min-15℃/min adjustable
Analysis Atmosphere Oxidizing Atmosphere / Reducing Atmosphere
Power Supply Single phase, AC220V±10%, 50/60Hz, ≤3.8kW
Net Weight 125kg
Dimension(mm) 520mm×627mm×1002mm
