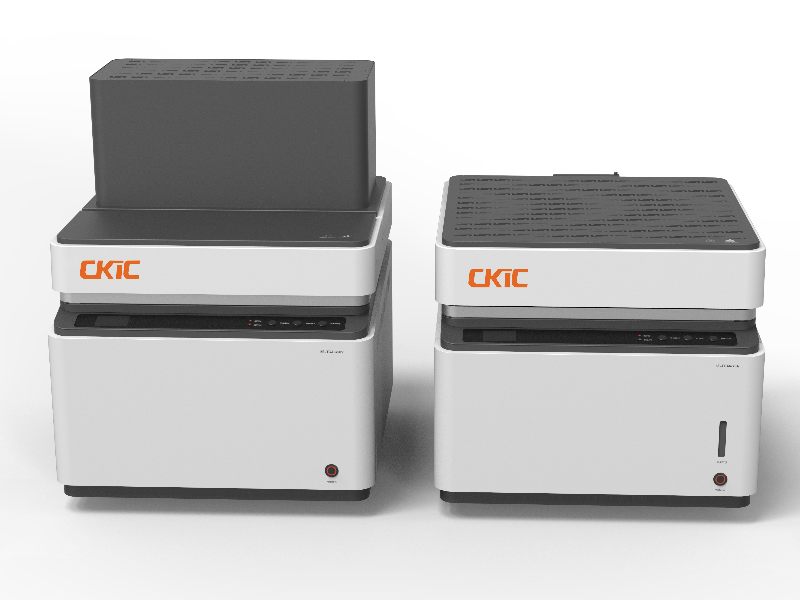

5E-TGA67 Series Proximate Analyzer-TGA

Automation and Efficiency
1. For moisture and ash testing, the sample should be spread out with a density not exceeding 0.1g/cm².
2. Without requiring an external gas source to operate the furnace cover. After analysis, it opens automatically and is covered by strong airflow, enabling a rapid transition to the next round of analysis.
3. 24 samples per analysis for the determination of moisture, ash and volatile matter with up to 3 batched completed within 8 hours.

Improved Safety
1. Equipped with a double thermocouple for enhanced heating protection, ensuring a more uniform temperature field, along with magnetic induction positioning.
2. Offer a range of functions, including crucible re-weighing, sample re-weighing, recovery after a power outage, out-of-olerance warning and fault diagnosis.

Centralized Management
1. Traceable testing data and processes, with QC charts generated from QC sample data, and comprehensive recording of parameters for CNAS compliance.
2. Provide real-time information on furnace temperature, sample weight, sample name, and hole position in a 4.3 inch color display.
3. Enabling the centralized control and maintenance management of up to five sets of proximate analyzers through a single computer and software.

Eco Friendliness
Equipped with an exhaust treatment system ,reducting dust, odor, and SO₂ emissions by over 90%.

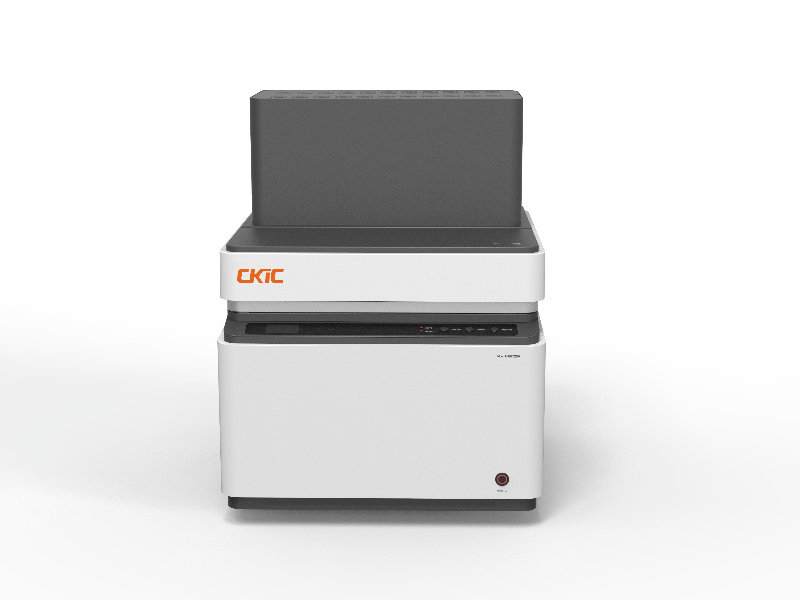

TGA 67V: 655mm×720mm×840mm

Model	5E-TGA67 Series-TGA
Analysis Content	Moisture,ash,volatile matter
Conforms to Method	GB/T 30732,GB/T 2001, GB/T 28731, ISO 17246, ASTM D7582, ISO 18123/18122/18134, ISO 11722, ISO 1171
Max. Sample Loading	24 samples+1 empty crucible
Analysis Time	Rapid method:about 150 mins Classical method:about 250 mins (*Depending on the sample)
Sample Mass	0.5-1.5g
Balance Precision	0.1mg
Requirements for Moisture&Ash Crucible	Not exceed 1g/cm² in the base area for the 1g sample after flattening
Max. Temperature	1050℃
Temp. Control Precision	±1℃
Gas Supplied	Air/Nitrogen/Oxygen (in TGA 67A)
Exhaust Gas Treatmemnt	Able to reduce dust, odor, and SO₂ emissions by over 90% (exclusive to TGA6720)
Operating Conditions	Ambient temperature:0-40℃ Ambientm humidity:<85% No strong vibration,strong electromagnetic interference and corrosive gas.
Communication Network	Ethernet
Power Supply	AC220±22V,50/60Hz 5kW (for moisture-ash device),4kW (for volatile matter device)

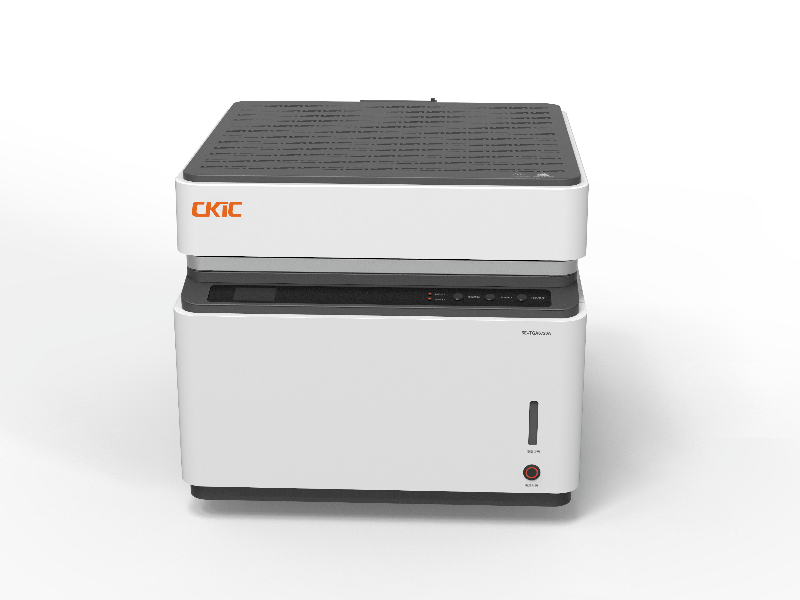

Dimensions(L×W×H)	TGA 67A: 655mm×795mm×570mm	TGA 67V: 655mm×720mm×840mm
